Agroplus F Keyline

The Perfect Fusion Between Simplicity and Specialised Capability

Embodying the experience of Deutz in the specialist tractor sector, the Agroplus Keyline offers extraordinary scope for configuration to cater for every specific need. Boasting a modern design, simplicity, affordable pricing, and sturdy construction, the Agroplus Keyline is a tireless worker with impressive manoeuvrability.

Maximum Power

75 HP
Number of Speeds

15F/15R-30F/15R
Hydraulic Capacity

42-45 L/min

Great equipment at a small price.

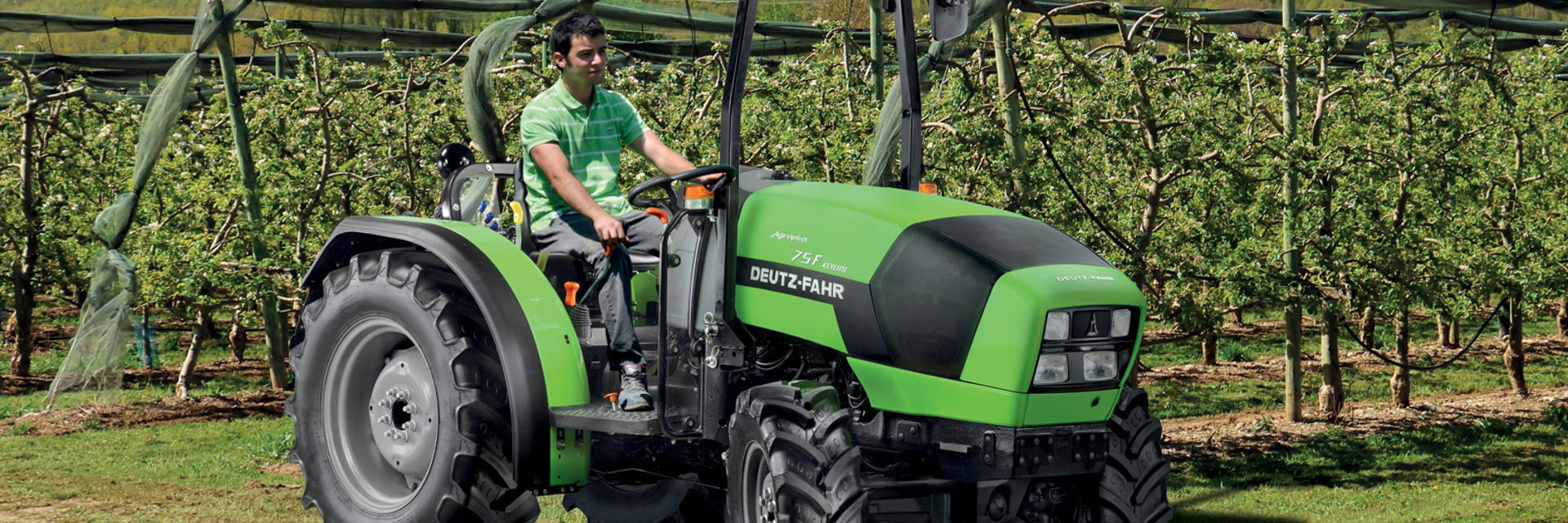

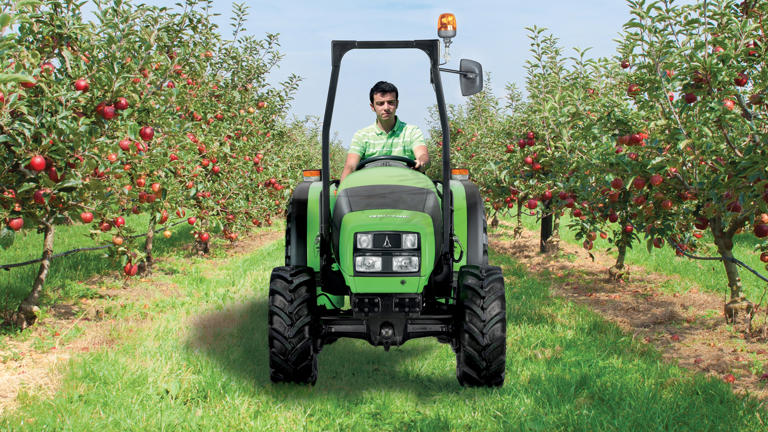

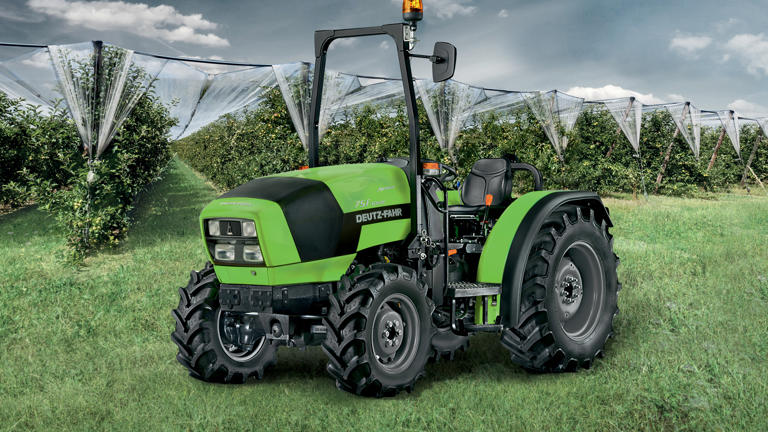

With the Agroplus F Keyline, DEUTZ-FAHR offers the ideal specialist tractor for vineyards, orchards and small farming operations. With a level of driving comfort and operating convenience that is exemplary in this category, a four-cylinder engine turbo and intercooler, a five-speed gearbox for maximum speed of up to 40 Km/h, a unique front axle and braking concept, four-wheel drive and 3050 kg rear lifting capacity, the Agroplus F Keyline not only delivers a wide choice of equipment at a competitive price, but is the ideal tractor for any specialised operation.

Get in, drive off and feel good.

The driver’s seat and seating position are extremely comfortable. All of the operating and driving data is put together clearly on the infocentre behind the steering wheel. The driver can constantly have an eye on everything. The controls are easy and right at hand, arranged logically according to how often they are used and clearly colour coded. This guarantees largely error-free operation, even when working hours surpass the normal levels.

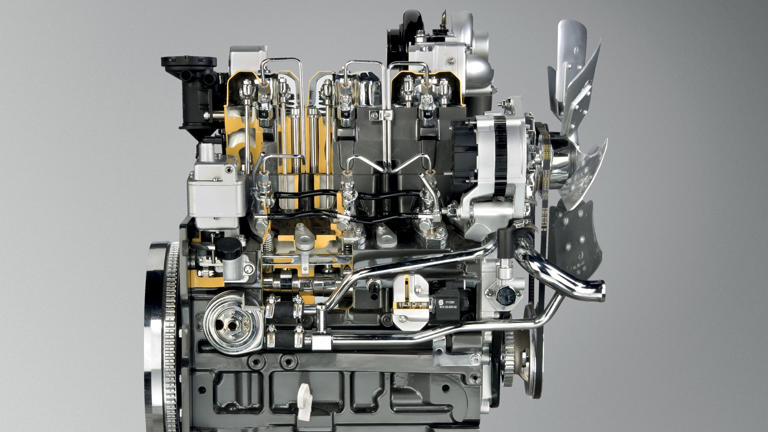

FOUR CYLINDERS FOR THE POWER AND RELIABILITY YOU EXPECT FROM A SAME ENGINE.

SAME engines are specifically conceived and built to cater for the needs of modern agriculture, and Agroplus Keyline tractors are available with a 4 cylinder engine to offer more pulling power. These engines also feature an exclusive injection system with an individual injection pump for each cylinder for unparalleled reliability. HRT (Hydraulic Roller Tappets) technology uses hydraulic roller tappets to optimize injection timing management, eliminating the typical white smoke produced by diesel engines when starting in cold conditions and ensuring maximum productivity and efficiency even during the first few hours of use. The aluminium radiator pack (engine coolant radiator, hydraulic oil radiator and intercooler) is compact and extremely quick and easy to clean, even when out in the field. The 65 l fuel tank lets Agroplus Keyline tractors keep on going long after a regular working day is over.
SIMPLE, EFFICIENT AND DEPENDABLE: WITH PERFECTLY SPACED RATIOS FOR SPECIALIST TASKS.

Agroplus Keyline tractors offer extensive scope for configuring the transmission, with transmissions designed and built specifically to deliver outstanding productivity while being extraordinarily intuitive and simple to use. The transmission gives the tractor a top speed of 40 km/h and features a synchronised reverse shuttle, offering the driver the same choice of ratios in both forward and reverse directions. Ideal weight distribution, impressive ground clearance and 100% lockable front and rear differentials make these tractors perfectly suited to all tasks, from the simplest to the most challenging. These features contribute, together with the potent wet disc brakes on each wheel, to the class beating active safety of Agroplus Keyline tractors, which offer superlative control and stability without requiring the automatic engagement of dual traction when braking. These tractors are also equipped as standard with a separate brake valve, selectable on the fly to let the driver choose to use the brakes on the rear axle only, or even use the brakes on the rear wheels individually, to make headland manoeuvres even easier.
A COMPREHENSIVE, HIGH PERFORMANCE AND SIMPLE TO USE HYDRAULIC SYSTEM - WHAT MORE COULD YOU WANT?

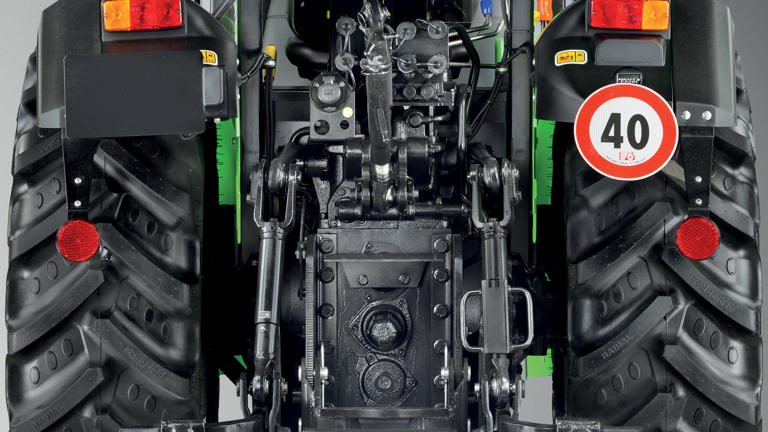

With the Agroplus Keyline, you'll never be short of hydraulic oil flow again. Featuring a dual pump hydraulic system and 4-way (or optional 6-way) auxiliary distributors, as well as a dedicated pump for the hydraulic steering system, the Keyline ensures smooth steering action in all conditions. The hydraulic rear lift is controlled by a new SAC (Automatic Control Station) offering even greater precision and requiring even less effort to operate the control levers. The STANDARD lift offers a maximum lift capacity (at the lower link ends) of 3050 kg, while the COMPACT version has a lift capacity of 2700 kg. The standard mechanically controlled ground speed PTO features an independent clutch and offers the standard 540 rpm and 540 ECO speed modes, as well as a “Syncro” mode, with speed synchronised with the ground speed of the tractor.
UNCOMPROMISED COMFORT AND ERGONOMICS AND EXTRAORDINARY USER-FRIENDLINESS.

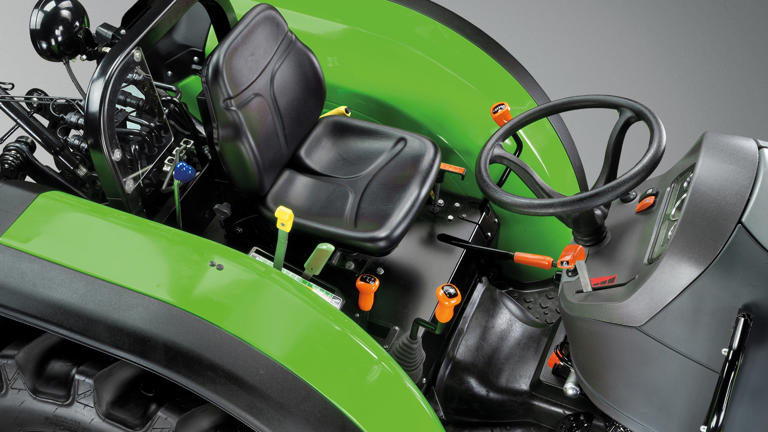

Agroplus Keyline tractors offer a spacious, comfortable driver zone with a modern, intuitive and ergonomic layout for the controls and instruments. All the main controls are comfortable and easy to operate, colour coded for intuitive, error-free usage and offer unimpeded access to the driver and the unhindered freedom of movement needed when working in the field. Specifically: The range and gear selector levers, hydraulic distributor control levers, mechanical differential lock pedal and hand throttle, are situated to the right of the driver, while the ground speed PTO speed selector lever, front-wheel drive on/off lever, the PTO clutch control lever and the parking brake are situated on the left. The instrumentation includes easy to read analogue dials providing information on the functions and status of the machine, as well as conventional warning lamps. And for total safety in the case of overturning, these tractors are equipped with a sturdy two-pillar front roll-bar, which folds down to facilitate manoeuvres in spaces with limited headroom and storage when the tractor is not in use.
